TURRET PUNCHING PRESS

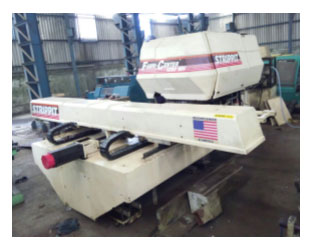

55) LVD/STRIPPIT CNC Turret Punch Press

Capacity : 33 TON, 40 tools TURRET, Sheet size : 1,250 x 2,400 mm, with Ball Transfers,
2-Pneumatic sheet grips, sheet thickness : 6.25 mm, Hydraulic unit, FANUC  O-P CNC Controls
with tools. Machine running with running video. IMPORTED FROM USA.

---

56) MURATA WARNER & SWASEY CNC Turret Punch Press

Model : W-4560, 50 Tons capacity , Sheet size : 1,250 x 2,400 mm, with FANUC O-PC CNC Controls
Max. Thickness 10 mm,  Max Sheet weight :  206 Kg, Rapid Traverse to X and Y: 38 meters/Minute,
SPM :175, Turret : 36 tools. IMPORTED FROM USA .

---

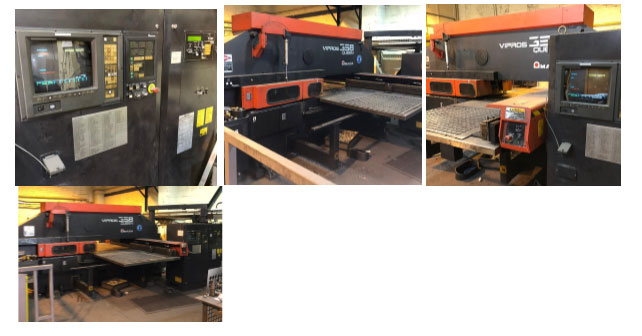

57) Amada Vipros 358 queen Turret Punching Press

Frame Construction - Bridge Type , cnc control - Fanuc 04PC , Press Capacity - 30 Tonnes (294kN)
Press Type - Servo Controlled variable Hydraulic Ram, Axis Traverse Distance - 1270 mm x 2000 mm
Workable Max. Sheet Size - 1270 mm x 4000 mm, max material thickness - 6.35mm MS, Max. Material Weight ) - 150 kg Max at max speed 100 kg, Max. Hole Dia. - 114.3 mm , Number Of Stations –
 45 Stations: - 24 x 12.7 mm 12 x 31.7 mm 2 x 50.8 mm 1 x 88.9 mm 2 x 114.3 mm , auto-index
stations - 2 x 31.7 mm 2 x 50.8 mm , Hits Per Minute (2mm Pitch) - 520 H.P.M./3mm stroke, Hits Per
Minute (2mm Pitch) - 275 H.P.M./8mm Stroke , Axis Speed - 82 m/min , Turret Speed Bi- Directional –
30 R.P.M , Ram Stroke Length (Maximum)- 40 mm, Tool Lubrication - Air Blow System, Axis and Turret
Drive - AC Servo Motor , Electric Power Required - 30 kVA 400V +/- 10% 50 Hz, Air Pressure Required- 5.0
kgf/cm � , Air Flow - 250 1/min , Cooling Water Flow - Min 40 1/min, Machine Weight - 13500 kg.
USED AMADA TURRET PUNCH PRESS ARRIVING IN OUR WAREHOUSE IN NAVI MUMBAI.

---
